Thermaltake ToughPower GF A3 Gold 850W – TT Premium Edition – power supply (internal) – ATX12V 3.0/ EPS12V – 80 PLUS Gold – AC 100-240 V – 850 Watt – active PFC – black

Descripción Corta:

Product Description: Thermaltake ToughPower GF A3 Gold 850W – TT Premium Edition – power supply – 850 Watt
Device Type: Power supply – active Power Factor Correction (PFC) – internal
Specification Compliance: ATX12V 3.0/ EPS12V
80 PLUS Certification: 80 PLUS Gold
Input Voltage: AC 100-240 V
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 850 Watt
Output Current: +3.3V – 20 A ¦ +5V – 20 A ¦ +12V – 70.8 A ¦ -12V – 0.3 A ¦ +5VSB – 3 A

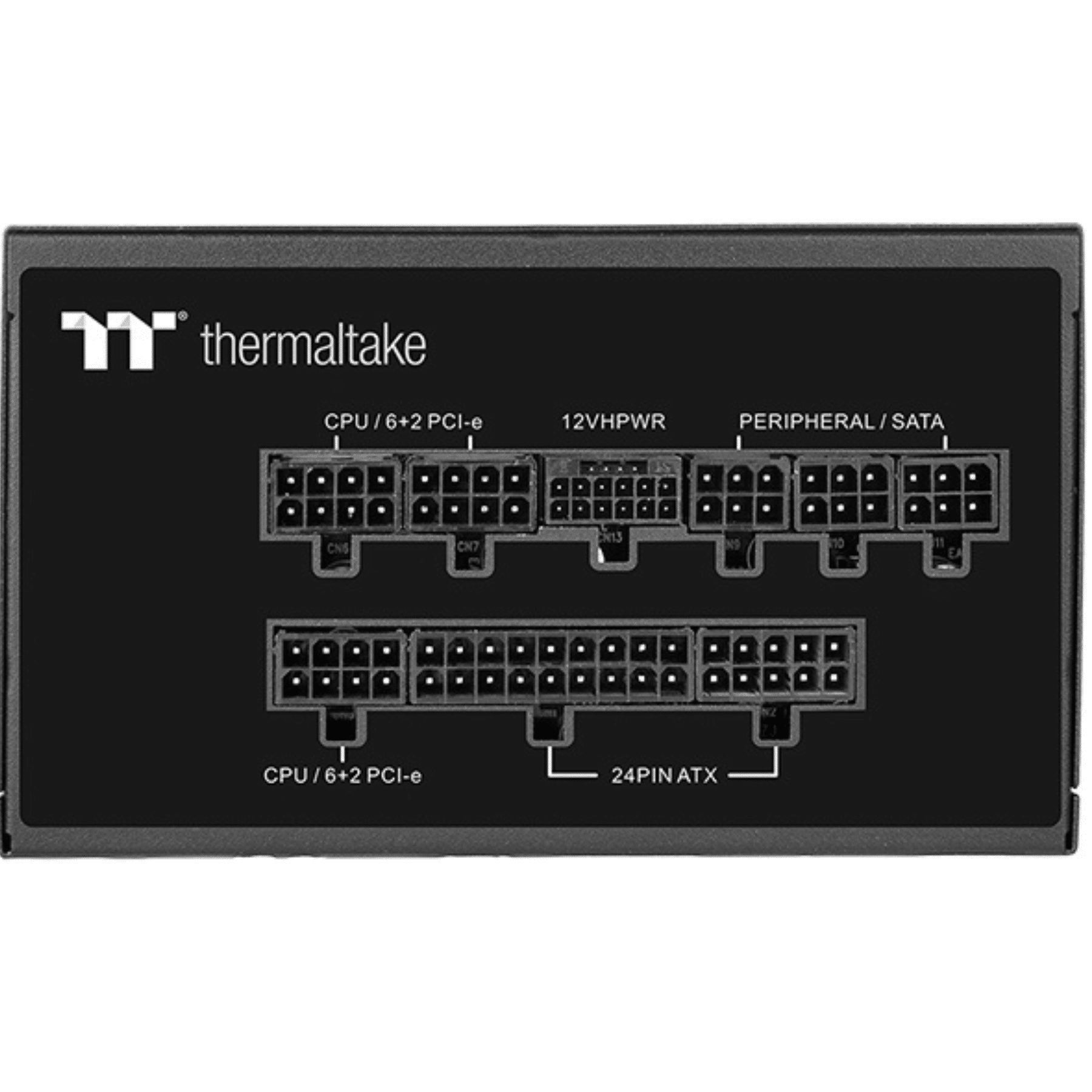

Output connectors: 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x 12VHPWR ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 pin internal power ¦ 8 x 15 pin Serial ATA power
Modular Cable Management: Yes
Cooling System: 120 mm fan
Color: Black
Dimensions (WxDxH): 5.9 in x 5.5 in x 3.4 in
Manufacturer Warranty: 10-year warranty

Descripción Completa:

General:
Device Type: Power supply – active Power Factor Correction (PFC) – internal
Specification Compliance: ATX12V 3.0/ EPS12V
PSU Form Factor: ATX
Color: Black

Power Device:
Input Voltage: AC 100-240 V
Frequency Required: 50 – 60 Hz
Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 1 x 12VHPWR ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 pin internal power ¦ 8 x 15 pin Serial ATA power
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 850 Watt
Output Current: +3.3V – 20 A ¦ +5V – 20 A ¦ +12V – 70.8 A ¦ -12V – 0.3 A ¦ +5VSB – 3 A
Modular Cable Management: Yes
80 PLUS Certification: 80 PLUS Gold

Miscellaneous:
Cables Included: Power 24 pin ATX with detachable 4 pin section modular cable 2 ft ¦ Power 2x 8 pin EPS12V modular cable 2 ft ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 1.6 ft ¦ 16-pin 12VHPWR power cable 2 ft ¦ 2 x Serial ATA power cable ¦ 4 pin internal power cable ¦ AC input cable – external
MTBF: 100,000 hours
Cooling System: 120 mm fan
Features: Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection, single 12V rail, DC-DC technology, fluid dynamic bearing cooling fan, fully modular, Smart Zero Fan, undervoltage correction
Compliant Standards: CB, FCC, ICES, cTUVus

Manufacturer Warranty:
Service & Support: Limited warranty – 10 years

Environmental Parameters:
Min Operating Temperature: 41 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 20 – 85% (non-condensing)

Dimensions & Weight:
Width: 5.9 in
Depth: 5.5 in
Height: 3.4 in
