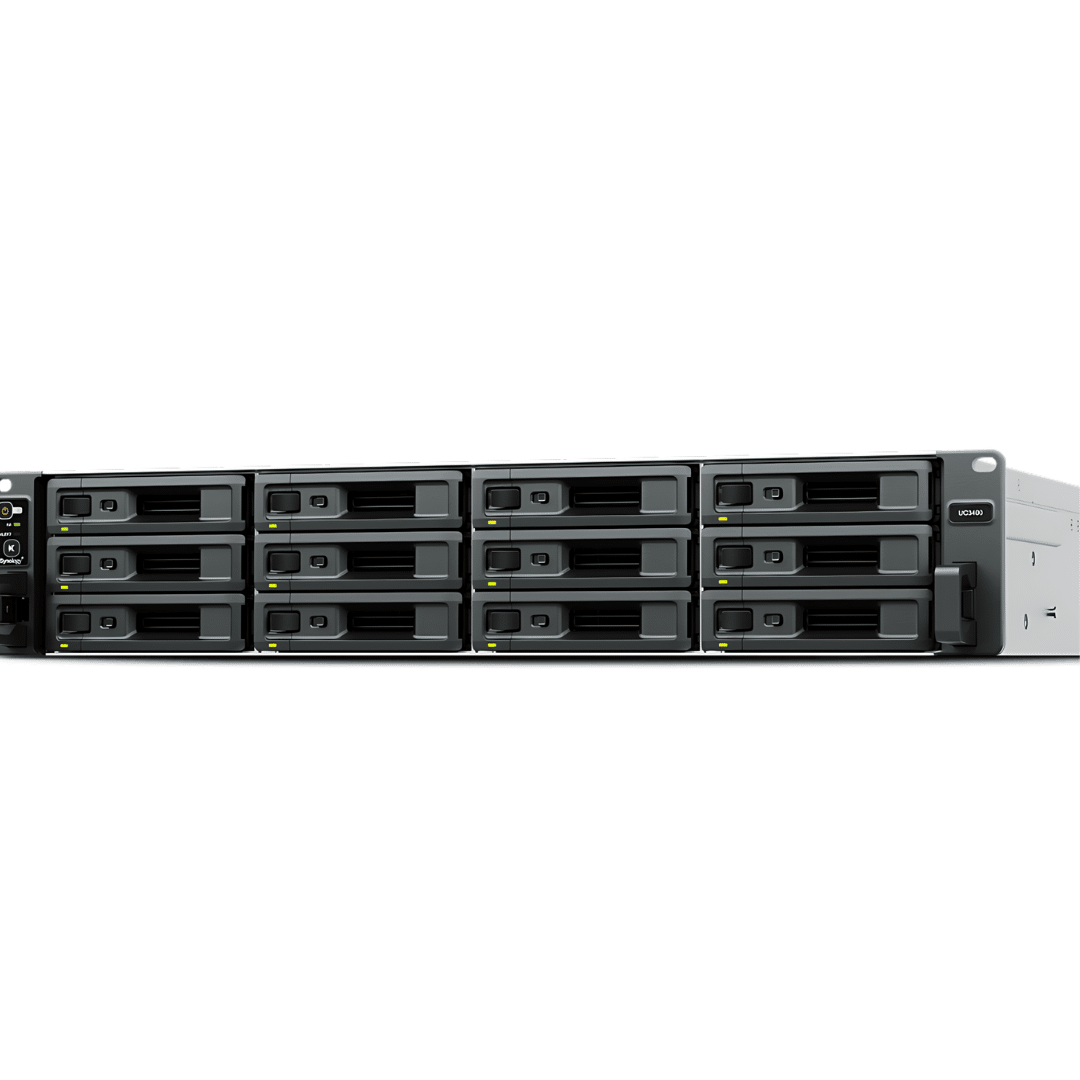

Synology UC3400 – NAS server – 12 bays – rack-mountable – RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare, 1 hot spare, RAID F1, F1 hot spare – RAM 16 GB – Gigabit Ethernet / 10 Gigabit Ethernet – iSCSI support

Descripción Corta:

Product Description: Synology UC3400 – NAS server
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type: Rack-mountable
Storage Capacity Details: Single volume size: 108 TB
Max Supported Capacity: 576 TB
Installed Devices / Modules Qty: 0 (installed) / 12 (max)
Dimensions (WxDxH): 19 in x 28.5 in x 3.5 in
Weight: 43.43 lbs ()
Localization: Danish, Hungarian, Czech, Thai, Chinese (traditional), Chinese (simplified), Brazilian Portuguese, English, German, French, Italian, Portuguese, Polish, Swedish, Russian, Spanish, Dutch, Turkish, Japanese, Korean
Processor: 2 x Intel Xeon D-1541 2.1 GHz (8-core)
Storage Controller: 2 x RAID RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare, 1 hot spare, RAID F1, F1 hot spare
Networking: 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
Performance: Maximum number of volume: 32 ¦ Maximum iSCSI target: 128 ¦ Maximum iSCSI LUN: 128 ¦ Local user account: 65 ¦ Maximum number of replication: 64 ¦ Maximum of system snapshots: 4096
RAM: 16 GB
Power: AC 100-240 V (50/60 Hz)
Power Redundancy: Yes
Manufacturer Warranty: 5-year warranty

Descripción Completa:

General:
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type: Rack-mountable
Total Storage Capacity: 0 GB
Storage Capacity Details: Single volume size: 108 TB
Max Supported Capacity: 576 TB
Installed Devices / Modules Qty: 0 (installed) / 12 (max)
Width: 19 in
Depth: 28.5 in
Height: 3.5 in
Weight: 43.43 lbs ()
Built-in Devices: LED panel
Localization: Danish, Hungarian, Czech, Thai, Chinese (traditional), Chinese (simplified), Brazilian Portuguese, English, German, French, Italian, Portuguese, Polish, Swedish, Russian, Spanish, Dutch, Turkish, Japanese, Korean

Processor / Memory:
Processors Installed: 2 x Intel Xeon D-1541 2.1 GHz
Number of Cores: 8-core
Max Supported Qty: 2
Max Turbo Speed: 2.7 GHz
RAM: 16 GB (installed) / 128 GB (supported) – DDR4
Features: ECC

Storage Controller:
Type: 2 x RAID
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare, RAID 1 hot spare, RAID F1, RAID F1 hot spare

Networking:
Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
Network / Transport Protocol: Telnet
Remote Management Protocol: SNMP, SSH
Performance: Maximum number of volume: 32 ¦ Maximum iSCSI target: 128 ¦ Maximum iSCSI LUN: 128 ¦ Local user account: 65 ¦ Maximum number of replication: 64 ¦ Maximum of system snapshots: 4096
Features: Hardware encryption, OpenStack compatible, B-tree file system (Btrfs), SSD trim, RAID migration, SSD read-write cache, RAID Group, advanced LUN support
Encryption Algorithm: AES-NI

Expansion / Connectivity:
Expansion Bays: 12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″
Expansion Slots: 2 (total) / 2 (free) x PCI Express 3.0 x8 ¦ 8 (total) / 6 (free) x DIMM 288-pin
Interfaces: 4 x Ethernet 1000Base-T – RJ-45 ¦ 2 x Ethernet 10Gb – RJ-45 ¦ 2 x serial (management) – DB-9 ¦ 2 x expansion port

Miscellaneous:
Features: Citrix Ready, VMware Ready, reset button, for 19″ server cabinets, easy replacement system fan, power recovery, built-in 4 x 60 mm cooling fans
Compliant Standards: VCCI, BSMI, FCC, RoHS, KC, EAC, RCM, UKCA
Included Accessories: Accessory pack, 2 x power cables

Power:
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 100-240 V (50/60 Hz)
Power Consumption Operational: 239.25 Watt
Power Provided: 500 Watt

Manufacturer Warranty:
Service & Support: Limited warranty – 5 years

Environmental Parameters:
Min Operating Temperature: 32 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 5 – 95% RH
Sound Emission: 51.3 dBA
