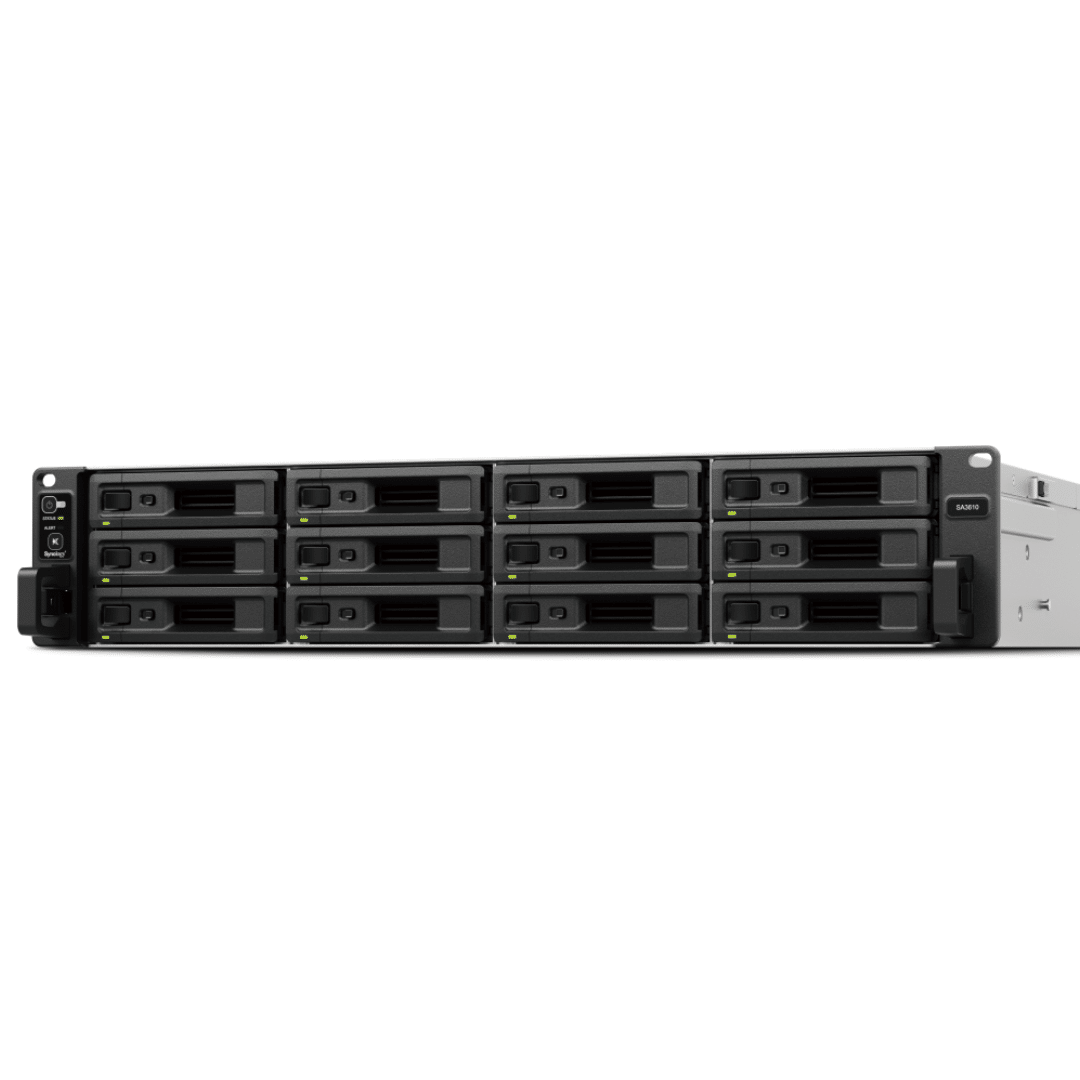

Synology SA3610 – NAS server – 12 bays – rack-mountable – SATA 6Gb/s / SAS – RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 – RAM 16 GB – Gigabit Ethernet / 10 Gigabit Ethernet – iSCSI support – 2U

Descripción Corta:

Product Description: Synology SA3610 – NAS server
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type: Rack-mountable – 2U
Max Supported Capacity: 1.728 PB
Installed Devices / Modules Qty: 0 (installed) / 12 (max)
Dimensions (WxDxH): 16.9 in x 27.2 in x 3.5 in
Weight: 31.97 lbs ()
Processor: 1 x Intel Xeon D-1567 2.1 GHz (12-core)
Storage Controller: RAID SATA 6Gb/s / SAS RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
Networking: 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
Performance: Sequential read: 6275 Mbps ¦ Sequential write: 3056 Mbps ¦ Random read: 450814 IOPS ¦ Random write: 122675 IOPS ¦ Local user account: 16000 ¦ Local group account: 512 ¦ Maximum number of shared folders: 512 ¦ Maximum concurrent connections: 4000
RAM: 16 GB
Power: AC 100-240 V (50/60 Hz)
Power Redundancy: Yes
Storage Operating System: Synology DiskStation Manager
Manufacturer Warranty: 5-year warranty

Descripción Completa:

General:
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet
Enclosure Type: Rack-mountable – 2U
Total Storage Capacity: 0 TB
Max Supported Capacity: 1.728 PB
Installed Devices / Modules Qty: 0 (installed) / 12 (max)
Width: 16.9 in
Depth: 27.2 in
Height: 3.5 in
Weight: 31.97 lbs ()
Built-in Devices: LED panel

Processor / Memory:
Processors Installed: 1 x Intel Xeon D-1567 2.1 GHz
Number of Cores: 12-core
Max Supported Qty: 1
Max Turbo Speed: 2.7 GHz
RAM: 16 GB (installed) / 128 GB (supported) – DDR4
Features: Registered, ECC

Storage Controller:
Type: RAID
Interface Type: SATA 6Gb/s / SAS
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1

Networking:
Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
Network / Transport Protocol: PPTP, L2TP, iSCSI, FTP, SMB, NFS, OpenVPN
Remote Management Protocol: SNMP, Telnet, SSH, LDAP
Network Services Compatibility: File Level Security (ACLs), Network File System (NFS), FTP, Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
Performance: Sequential read: 6275 Mbps ¦ Sequential write: 3056 Mbps ¦ Random read: 450814 IOPS ¦ Random write: 122675 IOPS ¦ Local user account: 16000 ¦ Local group account: 512 ¦ Maximum number of shared folders: 512 ¦ Maximum concurrent connections: 4000
Features: Firewall protection, VPN support, wake on LAN (WOL), B-tree file system (Btrfs), EXT4 file system, Rsync compatible, wake on WAN (WOW), Let’s Encrypt, SSD read-write cache, shared folder encryption, SMB encryption, login auto block, Kubernetes support
Encryption Algorithm: SSL, TLS

Expansion / Connectivity:
Expansion Bays: 12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″
Expansion Slots: 2 (total) / 2 (free) x PCI Express 3.0 x8 ¦ X M.2
Interfaces: 2 x USB 3.2 Gen 1 – Type A ¦ 1 x expansion port – Mini-SAS HD (SFF-8644) ¦ 1 x Ethernet 1000Base-T (management) – RJ-45 ¦ 2 x Ethernet 10Gb – RJ-45 ¦ 4 x Ethernet 1000Base-T – RJ-45

Miscellaneous:
Features: Scheduled power on/off, built-in 4 x 80 mm cooling fans
Compliant Standards: RoHS
Included Accessories: Accessory pack, 2 x power cables

Power:
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 100-240 V (50/60 Hz)

Software / System Requirements:
Storage Operating System: Synology DiskStation Manager

Manufacturer Warranty:
Service & Support: Limited warranty – 5 years

Environmental Parameters:
Min Operating Temperature: 32 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 8 – 80% RH
