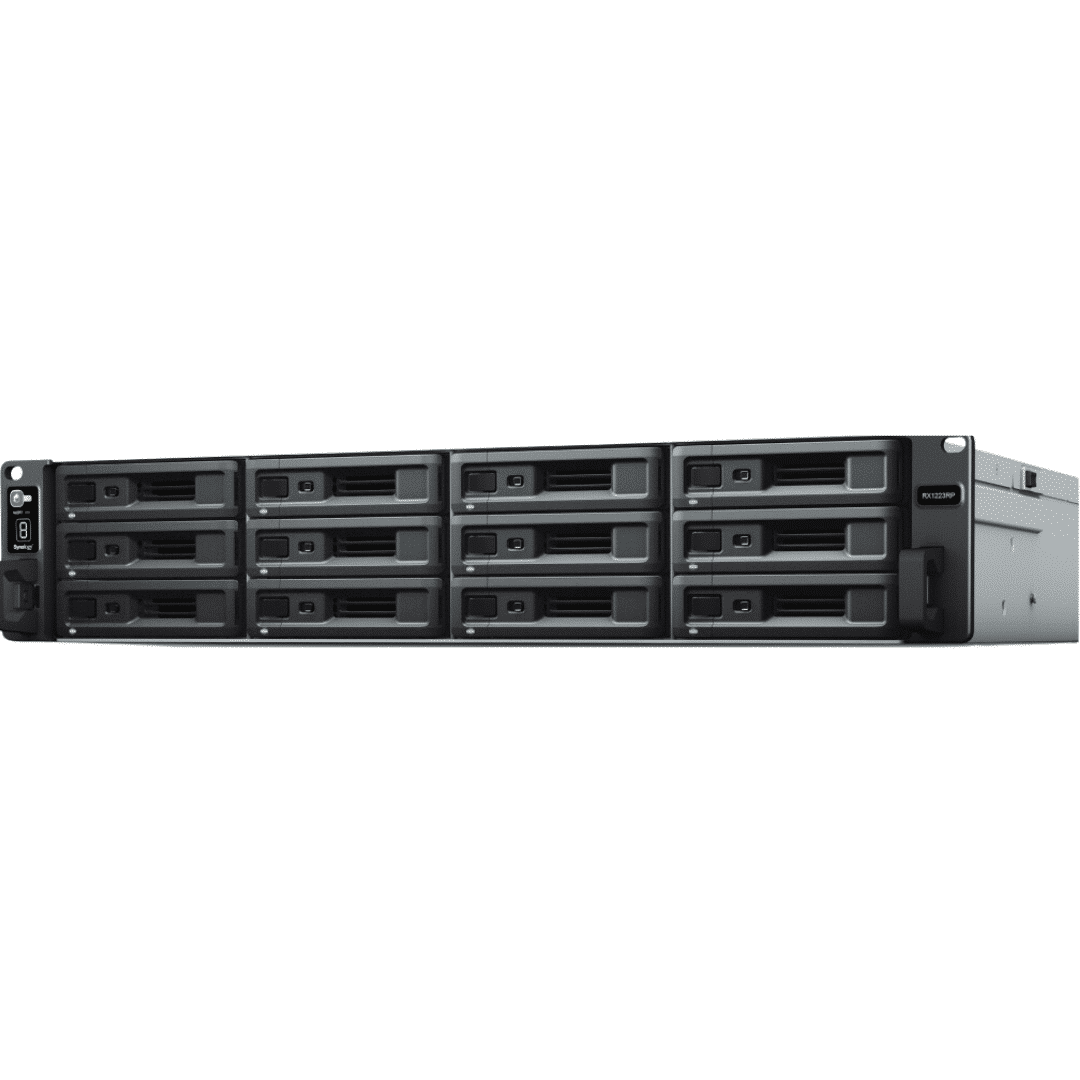

Synology RX1223RP Expansion Unit – Storage enclosure – 12 bays (SATA) – rack-mountable – 2U – for Synology HAT5300, RKS-02, SAT5210

Descripción Corta:

Product Description: Synology RX1223RP Expansion Unit – storage enclosure
Device Type: Storage enclosure
Enclosure Type: Rack-mountable – 2U
Max Supported Capacity: 216 TB
Installed Devices / Modules Qty: 0 (installed) / 12 (max)
Supported Drives: SATA
Hard Drive: No HDD
OS Required: Synology DiskStation Manager
Power: AC 100-240 V 50/60 Hz
Power Redundancy: Yes
Dimensions (WxDxH): 16.9 in x 27.2 in x 3.5 in
Weight: 30.64 lbs
Manufacturer Warranty: 5-year warranty
Designed For: Synology HAT5300, RKS-02, SAT5210

Descripción Completa:

General:
Device Type: Storage enclosure
Enclosure Type: Rack-mountable – 2U

Chassis:
Installed Devices / Modules Qty: 0
Supported Devices / Modules Qty: 12
Supported Drives: SATA

Storage:
Max Supported Capacity: 216 TB

Processor:
CPU: No CPU

Hard Drive:
Type: No HDD

Expansion / Connectivity:
Expansion Bays: 12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″ shared
Interfaces: 1 x expansion port

System Requirements:
OS Required: Synology DiskStation Manager

Miscellaneous:
Features: Built-in 4 cooling fans, 80mm cooling fan, for 19″ server cabinets, RAID support
Cables Included: 1 x mini SAS HD cable
Compliant Standards: Plug and Play, UL, VCCI, BSMI, FCC, KC, EAC, RCM, UKCA
Included Accessories: 2 power cords, accessory pack

Power:

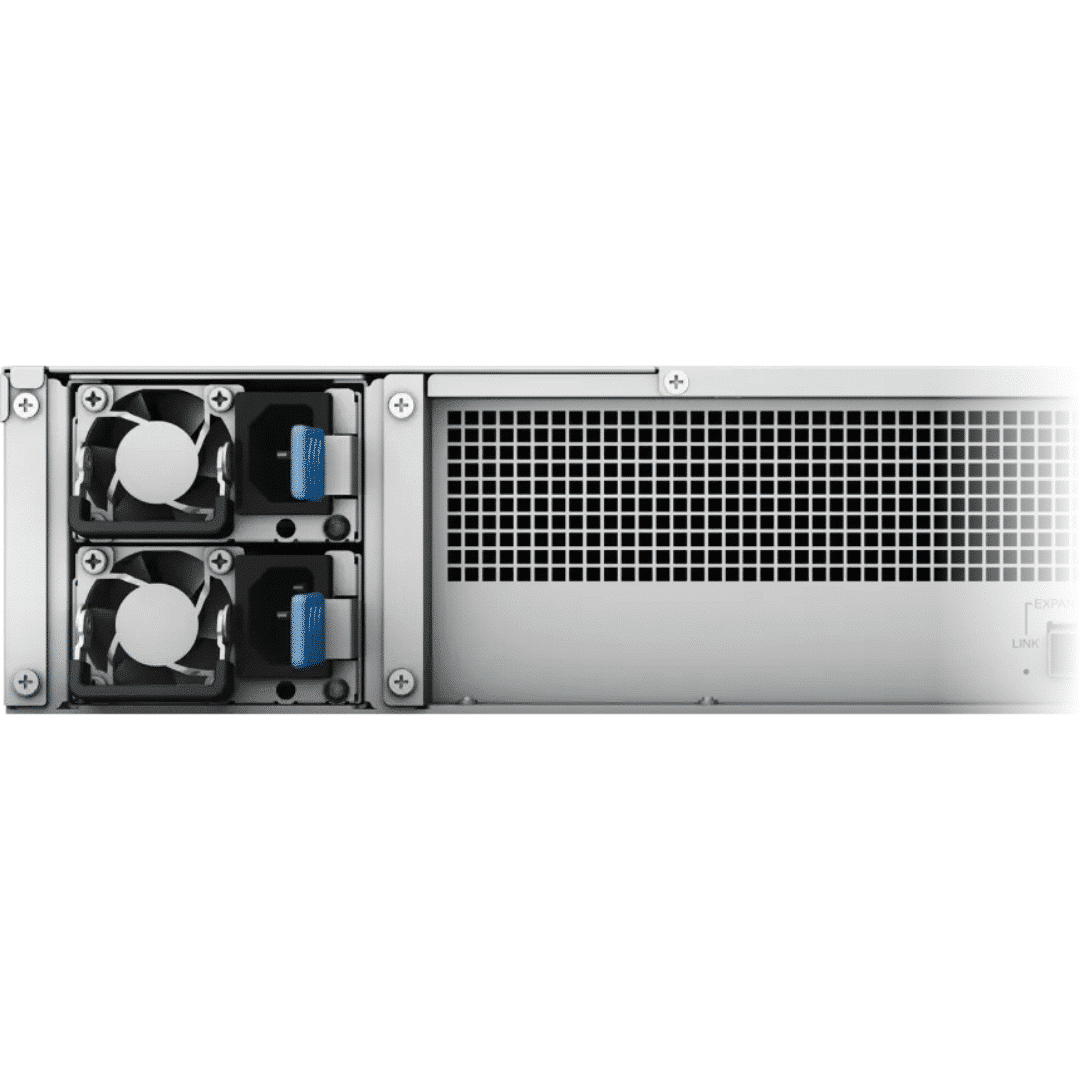

Power Device: 2 x internal power supply
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 100-240 V 50/60 Hz
Power Consumption Operational: 93.59 Watt
Power Provided: 550 Watt

Dimensions & Weight:
Width: 16.9 in
Depth: 27.2 in
Height: 3.5 in
Weight: 30.64 lbs

Manufacturer Warranty:
Service & Support: Limited warranty – 5 years

Environmental Parameters:
Min Operating Temperature: 32 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 5 – 95% RH
Sound Emission: 54.3 dBA

Compatibility Information:
Designed For: Synology HAT5300, RKS-02, SAT5210
