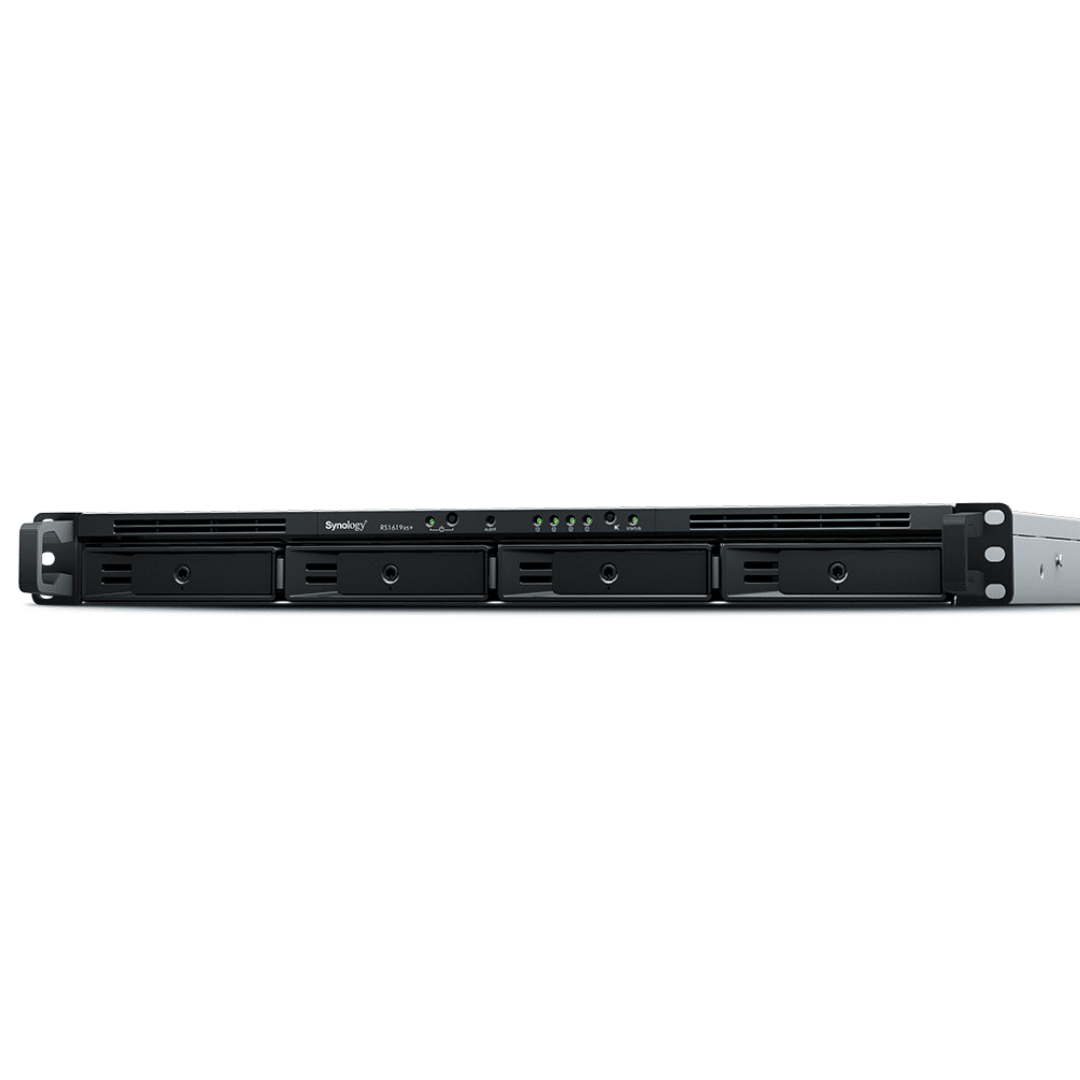

Synology RackStation RS1619xs+ – NAS server – 4 bays – rack-mountable – SATA 6Gb/s – RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 – RAM 8 GB – Gigabit Ethernet – iSCSI support – 1U

Descripción Corta:

Product Description: Synology RackStation RS1619xs+ – NAS server
Device Type: NAS server
Host Connectivity: Gigabit Ethernet
Enclosure Type: Rack-mountable – 1U
Max Supported Capacity: 56 TB
Installed Devices / Modules Qty: 0 (installed) / 4 (max)
Dimensions (WxDxH): 18.9 in x 20.4 in x 1.7 in
Weight: 17.99 lbs ()
Processor: 1 x Intel Xeon D-1527 2.2 GHz (Quad-Core)
Storage Controller: RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
Networking: 10Mb LAN, 100Mb LAN, 1GbE
IP Cameras Supported: 75
RAM: 8 GB
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Yes
Manufacturer Warranty: 5-year warranty

Descripción Completa:

General:
Device Type: NAS server
Host Connectivity: Gigabit Ethernet
Enclosure Type: Rack-mountable – 1U
Total Storage Capacity: 0 GB
Max Supported Capacity: 56 TB
Installed Devices / Modules Qty: 0 (installed) / 4 (max)
Width: 18.9 in
Depth: 20.4 in
Height: 1.7 in
Weight: 17.99 lbs ()
Built-in Devices: LED panel

Processor / Memory:
Processors Installed: 1 x Intel Xeon D-1527 2.2 GHz
Number of Cores: Quad-Core
Max Supported Qty: 1
Max Turbo Speed: 2.7 GHz
RAM: 8 GB (installed) / 64 GB (supported) – DDR4
Features: ECC

Storage Controller:
Type: RAID
Interface Type: SATA 6Gb/s
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1

Networking:
Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE
Network / Transport Protocol: TCP/IP, PPTP, L2TP, iSCSI, FTP, NFS
Remote Management Protocol: SNMP, Telnet, HTTPS, SSH
Network Services Compatibility: Microsoft Active Directory (AD), Microsoft CIFS, Network File System (NFS), FTP, Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
Features: Firewall protection, hardware encryption, LDAP support, wake on LAN (WOL), IP address filtering, backup server, download client, anti-malware protection, event log, Access Control List (ACL) support, Samba support, FTP server, reset button, bandwidth control, surveillance station, PXE support, DLNA Media Server, cloud backup, VPN Server, Dropbox support, anti-virus protection, Google Drive support, Amazon Cloud Drive support, Yandex Disk support, Microsoft OneDrive support, hubiC support, OpenStack Swift-compatible, cloud station server, MailPlus server, Amazon S3 support
Encryption Algorithm: SSL, TLS, AES-NI
Compliant Standards: DLNA CERTIFIED

Security DVR:
IP Cameras Supported: 75
Compression Format: MJPEG, H.264, H.265
Image Resolution: 1280×720, 1920×1080, 2048×1536, 2591×1944, 3840×2160

Expansion / Connectivity:
Expansion Bays: 4 (total) / 4 (free) x hot-swap – 2.5″ / 3.5″
Expansion Slots: 1 (total) / 1 (free) x PCI Express 3.0 x8 ¦ 4 (total) / 3 (free) x DIMM 288-pin ¦ 2 (total) / 2 (free) x M.2
Interfaces: 4 x Ethernet 1000Base-T – RJ-45 ¦ 2 x USB 3.0 – Type A ¦ 1 x serial (management) – DB-9

Miscellaneous:
Features: Wake on LAN, built-in 2 cooling fans, scheduled power on/off
Compliant Standards: VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM
Included Accessories: Accessory pack

Power:
Power Device: Internal power supply
Installed Qty: 2
Max Supported Qty: 2
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V (50/60 Hz)
Power Consumption Operational: 68.68 Watt
Power Provided: 150 Watt

Software / System Requirements:
Software Included: McAfee AntiVirus (Trial)

Manufacturer Warranty:
Service & Support: Limited warranty – 5 years

Environmental Parameters:
Min Operating Temperature: 41 °F
Max Operating Temperature: 95 °F
Humidity Range Operating: 5 – 95%
Sound Emission: 39.3 dBA
