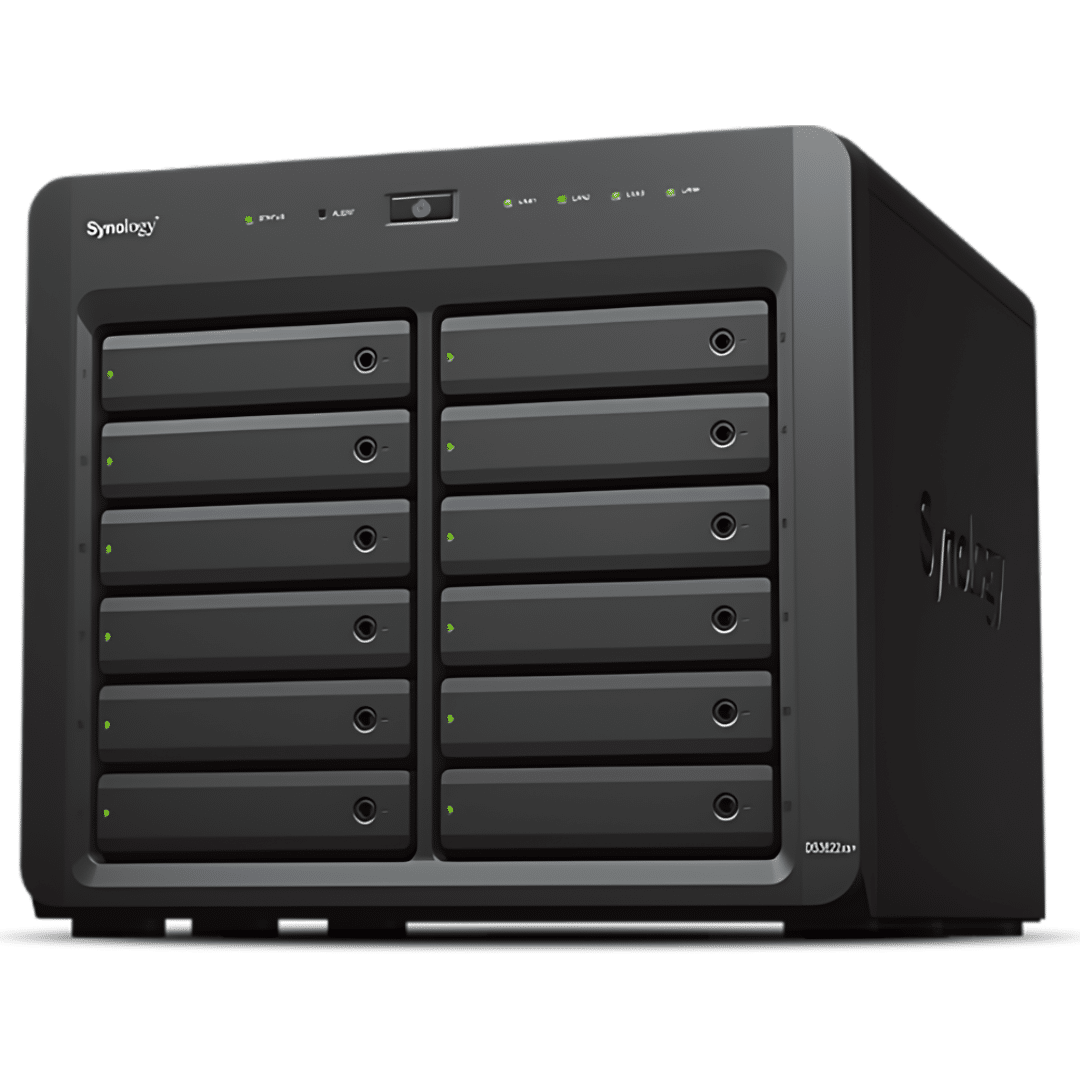

Synology Disk Station DS3622XS+ – NAS server – 12 bays – SATA 6Gb/s – RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 – RAM 16 GB – Gigabit Ethernet / 10 Gigabit Ethernet – iSCSI support

Descripción Corta:

Product Description: Synology Disk Station DS3622XS+ – NAS server
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet
Installed Devices / Modules Qty: 0 (installed) / 12 (max)
Dimensions (WxDxH): 11.8 in x 13.4 in x 10.6 in
Weight: 21.61 lbs ()
Processor: 1 x Intel Xeon D-1531 2.2 GHz (6-core)
Storage Controller: RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
Networking: 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
IP Cameras Supported: 75
RAM: 16 GB
Power: AC 100-240 V (50/60 Hz)
Storage Operating System: Synology DiskStation Manager
System Requirements: Microsoft Windows 7 or later, Apple MacOS X 10.12 or later
Manufacturer Warranty: 5-year warranty

Descripción Completa:

General:
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet
Total Storage Capacity: 0 GB
Installed Devices / Modules Qty: 0 (installed) / 12 (max)
Width: 11.8 in
Depth: 13.4 in
Height: 10.6 in
Weight: 21.61 lbs ()
Built-in Devices: LED panel

Processor / Memory:
Processors Installed: 1 x Intel Xeon D-1531 2.2 GHz
Number of Cores: 6-core
Max Supported Qty: 1
Max Turbo Speed: 2.7 GHz
RAM: 16 GB (installed) / 48 GB (supported) – DDR4

Storage Controller:
Type: RAID
Interface Type: SATA 6Gb/s
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1

Networking:
Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 10GbE
Network / Transport Protocol: TCP/IP, PPTP, L2TP, iSCSI, SMTP, FTP, DNS, POP3, IMAP, SMB, NFS, SFTP, HTTP, HTTPs
Remote Management Protocol: SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, SFTP
Network Services Compatibility: Microsoft Active Directory (AD), DNS, File Level Security (ACLs), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), SFTP, Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1)
Features: Firewall protection, hardware encryption, LDAP support, wake on LAN (WOL), High Availability, backup server, download client, file sharing, event log, Access Control List (ACL) support, RADIUS support, iTunes server, FTP server, reset button, bandwidth control, surveillance station, PXE support, DNS server, DLNA Media Server, Apple Time Machine compatible, e-mail notification, cloud backup, VPN Server, Dropbox support, anti-virus protection, Link Aggregation, Photo album server, Google Drive support, Yandex Disk support, Microsoft OneDrive support, OpenStack compatible, file station, hubiC support, OpenStack Swift-compatible, WebDAV server support, Baidu cloud support, cloud station server, MailPlus server, Amazon S3 support, Rsync compatible, Alibaba Cloud OSS support, Backblaze B2 support, MegaDisk support, Tencent COS support
Encryption Algorithm: SSL, TLS, AES-NI

Security DVR:
IP Cameras Supported: 75
Compression Format: MJPEG, H.264, H.265
Image Resolution: 1280×720, 1920×1080, 2048×1536, 2591×1944, 3840×2160

Expansion / Connectivity:
Expansion Bays: 12 (total) / 12 (free) x hot-swap – 2.5″ / 3.5″

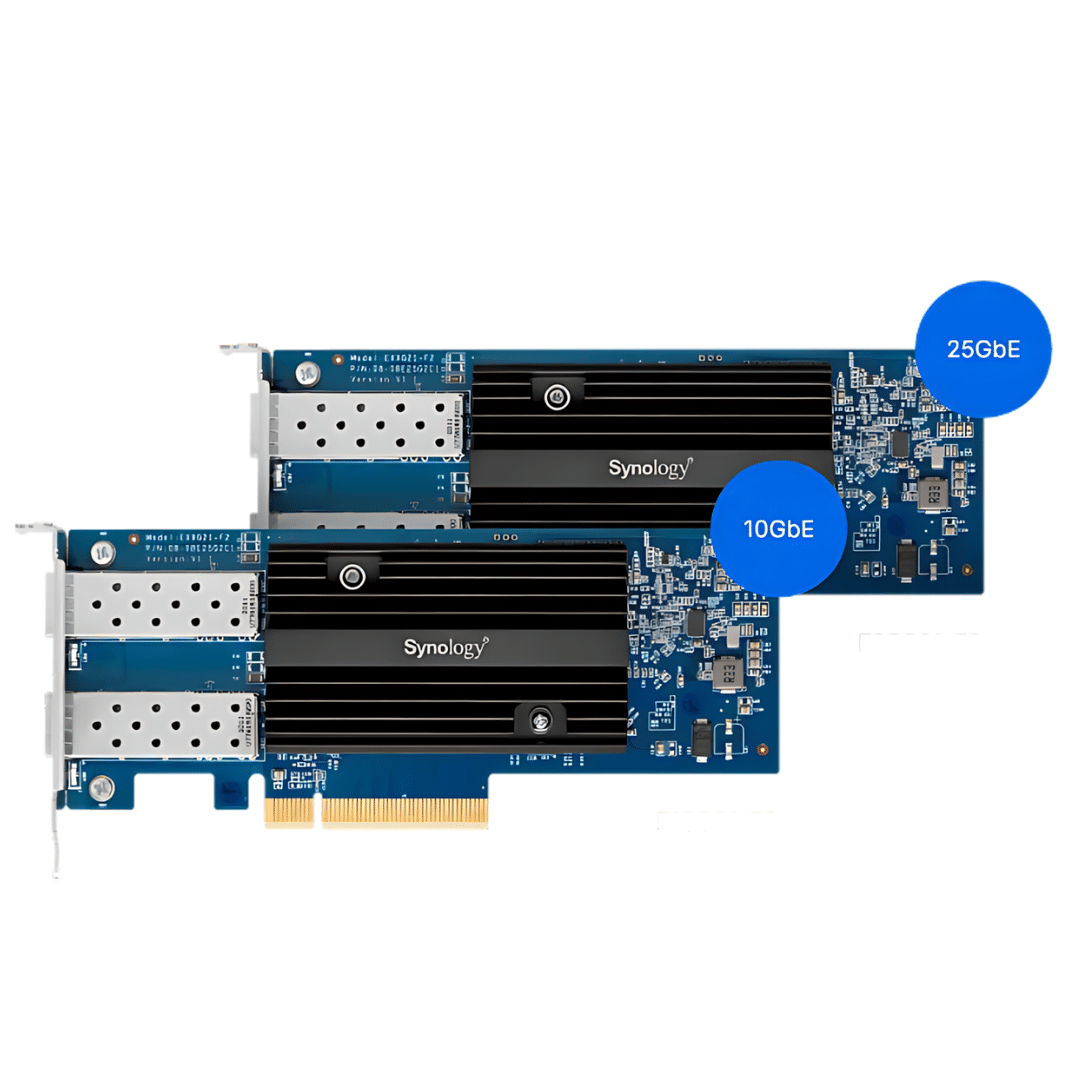

Expansion Slots: 1 (total) / 1 (free) x PCI Express 3.0 x8 ¦ 4 (total) / 2 (free) x SO-DIMM 260-pin

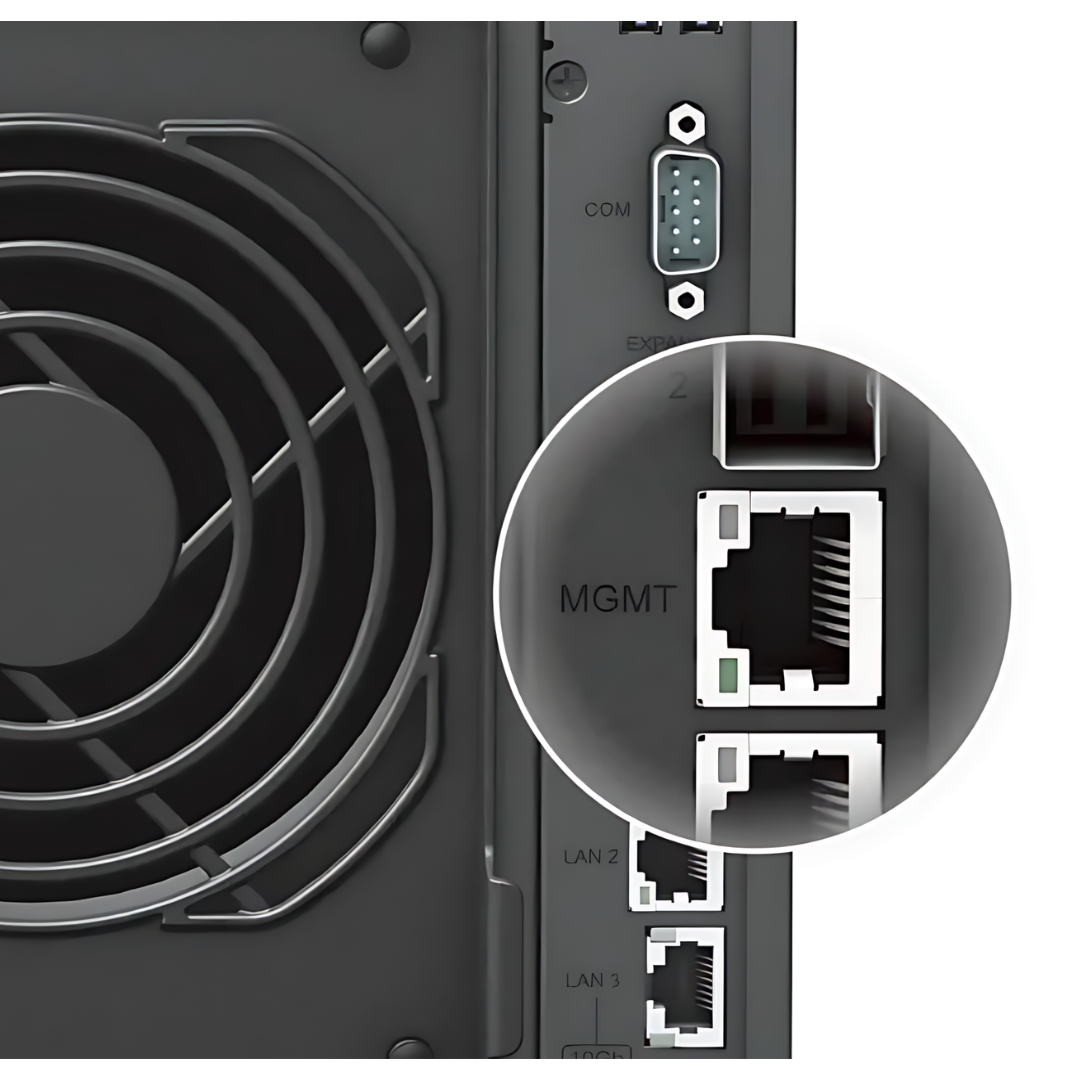

Interfaces: 2 x USB 3.2 Gen 1 – Type A ¦ 2 x Ethernet 1000Base-T – RJ-45 ¦ 2 x Ethernet 10Gb – RJ-45 ¦ 2 x expansion port

Miscellaneous:
Cables Included: 2 x network cable
Features: Wake on LAN, lockable, built-in 2 cooling fans, scheduled power on/off, reset button
Compliant Standards: VCCI, BSMI, FCC, RoHS, KC, EAC, RCM
Included Accessories: Accessory pack

Power:
Power Device: Internal power supply
Voltage Required: AC 100-240 V (50/60 Hz)
Power Provided: 550 Watt

Software / System Requirements:
Storage Operating System: Synology DiskStation Manager
Software Included: McAfee AntiVirus (Trial)
OS Required: Microsoft Windows 7 or later, Apple MacOS X 10.12 or later

Manufacturer Warranty:
Service & Support: Limited warranty – 5 years

Environmental Parameters:
Min Operating Temperature: 41 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 – 95% RH
Sound Emission: 25 dBA
