Synology Disk Station DS1823XS+ – NAS server – 8 bays – SATA 6Gb/s – RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1 – RAM 8 GB – Gigabit Ethernet / 10 Gigabit Ethernet – iSCSI support

Descripción Corta:

Product Description: Synology Disk Station DS1823XS+ – NAS server
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet
Installed Devices / Modules Qty: 0 (installed) / 8 (max)
Dimensions (WxDxH): 13.5 in x 9.6 in x 6.5 in
Weight: 13.67 lbs ()
Processor: 1 x AMD Ryzen V1780B 3.35 GHz (Quad-Core)
Storage Controller: RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD, RAID F1
Networking: 1GbE, 10GbE
IP Cameras Supported: 75
RAM: 8 GB
Power: AC 100-240 V (50/60 Hz)
Storage Operating System: Synology DiskStation Manager
Manufacturer Warranty: 5-year warranty

Descripción Completa:

General:
Device Type: NAS server
Host Connectivity: Gigabit Ethernet / 10 Gigabit Ethernet
Total Storage Capacity: 0 GB
Installed Devices / Modules Qty: 0 (installed) / 8 (max)
Width: 13.5 in
Depth: 9.6 in
Height: 6.5 in
Weight: 13.67 lbs ()

Processor / Memory:
Processors Installed: 1 x AMD Ryzen V1780B 3.35 GHz
Number of Cores: Quad-Core
Max Supported Qty: 1
Max Turbo Speed: 3.6 GHz
RAM: 8 GB (installed) / 32 GB (supported) – DDR4
Features: ECC

Storage Controller:
Type: RAID
Interface Type: SATA 6Gb/s
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1

Networking:
Data Link Protocol: 1GbE, 10GbE
Network / Transport Protocol: PPTP, L2TP, OpenVPN
Remote Management Protocol: SNMP, Telnet, HTTP, HTTPS, SSH
Network Services Compatibility: Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), SFTP, Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1)
Features: Firewall protection, LDAP support, wake on LAN (WOL), Access Control List (ACL) support, DLNA Media Server, cloud backup, VPN Server, Link Aggregation, failover protection, B-tree file system (Btrfs), EXT4 file system, SSD trim, RAID migration, MailPlus server, Rsync compatible, wake on WAN (WOW), Let’s Encrypt, NFS Kerberos authentication, SSD read-write cache, RAID Group, shared folder encryption, SMB encryption, login auto block
Encryption Algorithm: SSL, TLS

Security DVR:
IP Cameras Supported: 75
Compression Format: H.264, H.265
Image Resolution: 1280×720, 1920×1080, 2048×1536, 2591×1944, 3840×2160

Expansion / Connectivity:
Expansion Bays: 8 (total) / 8 (free) x hot-swap – 2.5″ / 3.5″

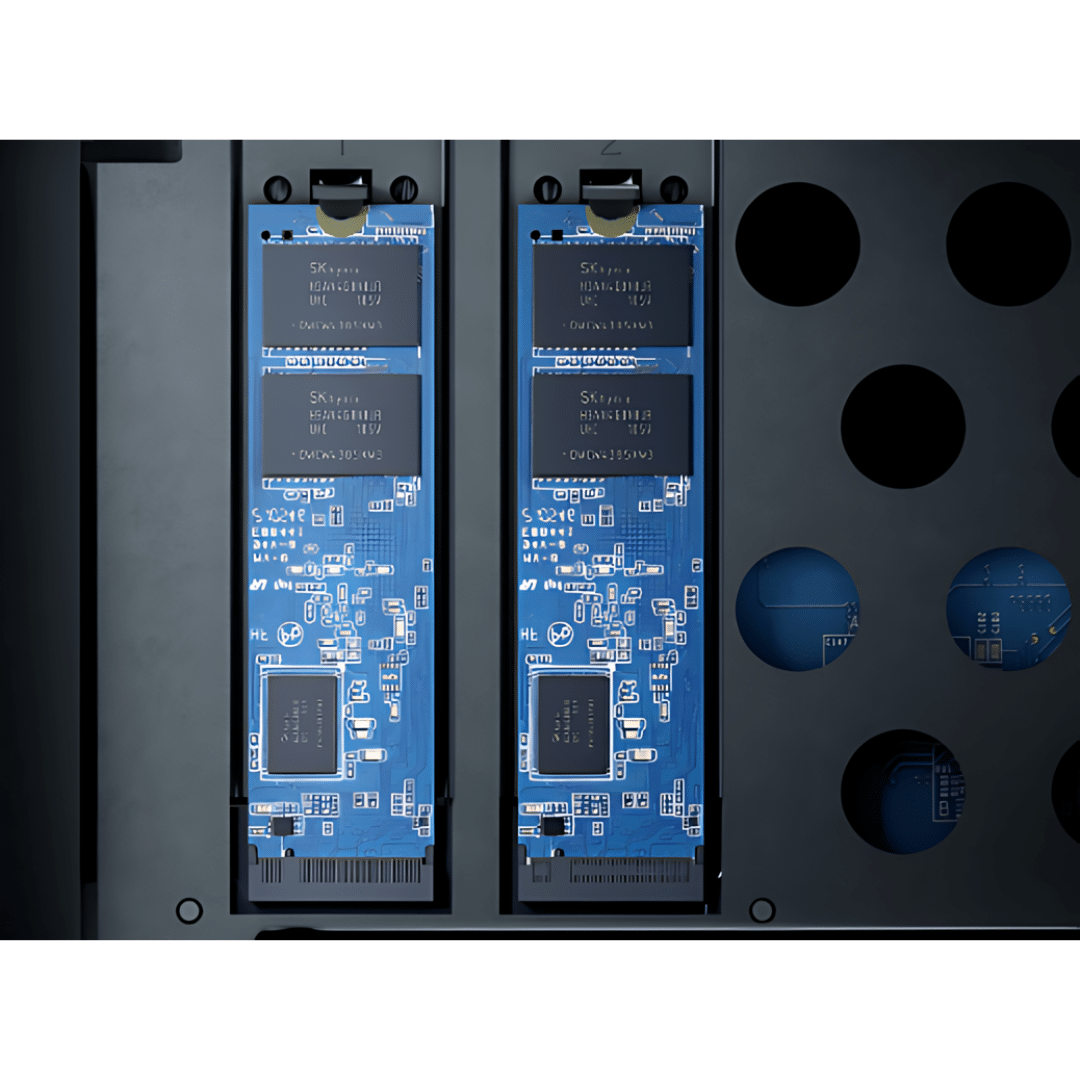

Expansion Slots: 2 (total) / 1 (free) x SO-DIMM 260-pin ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x8 (x4 mode)
Interfaces: 2 x Ethernet 1000Base-T – RJ-45 ¦ 1 x Ethernet 10Gb – RJ-45 ¦ 1 x management ¦ 3 x USB 3.2 Gen 1 ¦ 2 x eSATA

Miscellaneous:
Cables Included: 2 x network cable
Features: Security lock slot (cable lock sold separately), built-in 2 cooling fans, Citrix Ready, scheduled power on/off, power recovery
Security Slot Type: Kensington security slot
Compliant Standards: VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM
Included Accessories: Accessory pack, power cable

Power:
Power Device: Internal power supply
Voltage Required: AC 100-240 V (50/60 Hz)
Power Consumption Operational: 87.93 Watt
Power Provided: 250 Watt

Software / System Requirements:
Storage Operating System: Synology DiskStation Manager
Software Included: McAfee AntiVirus (Trial)

Manufacturer Warranty:
Service & Support: Limited warranty – 5 years

Environmental Parameters:
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 8 – 80% RH
Sound Emission: 23.6 dBA
