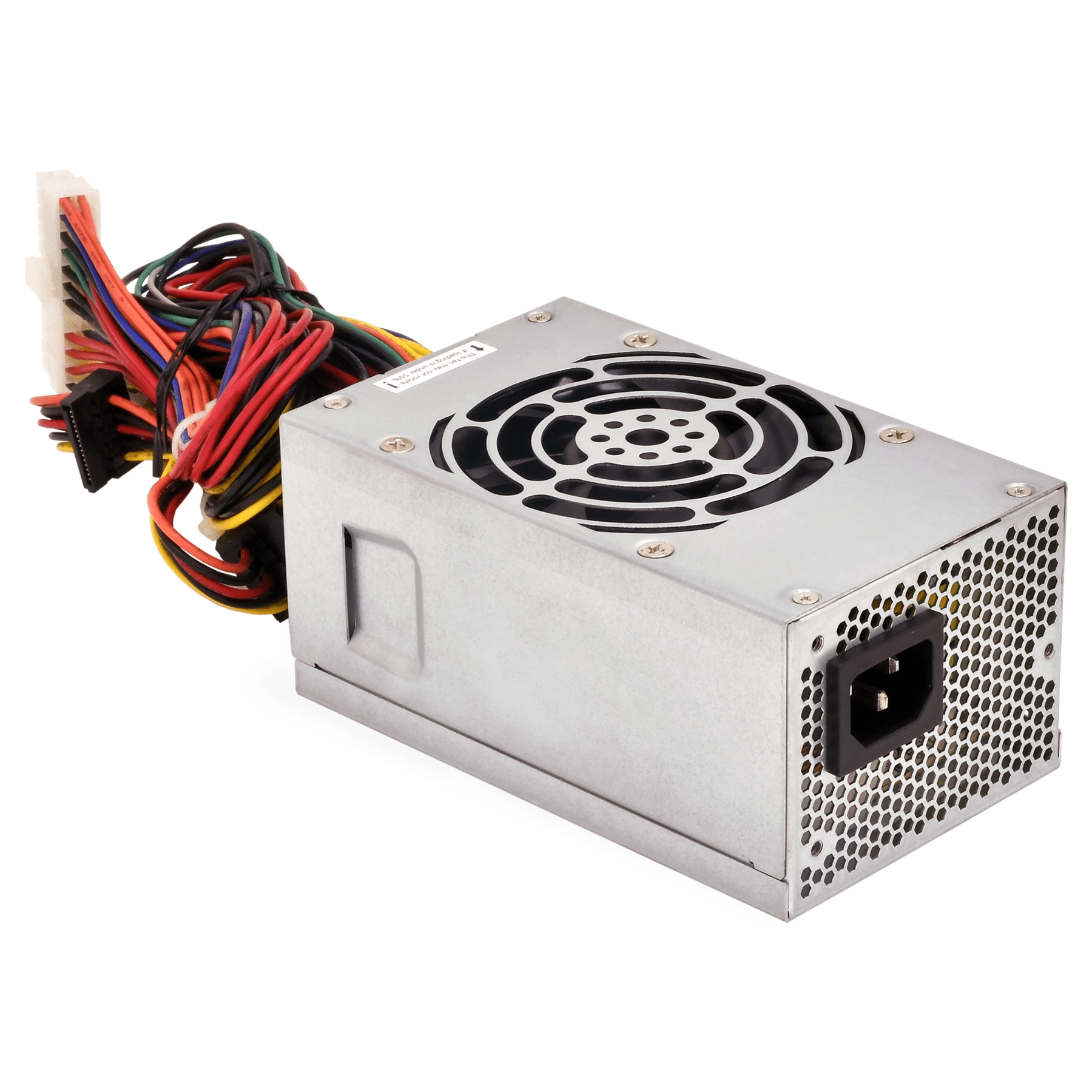

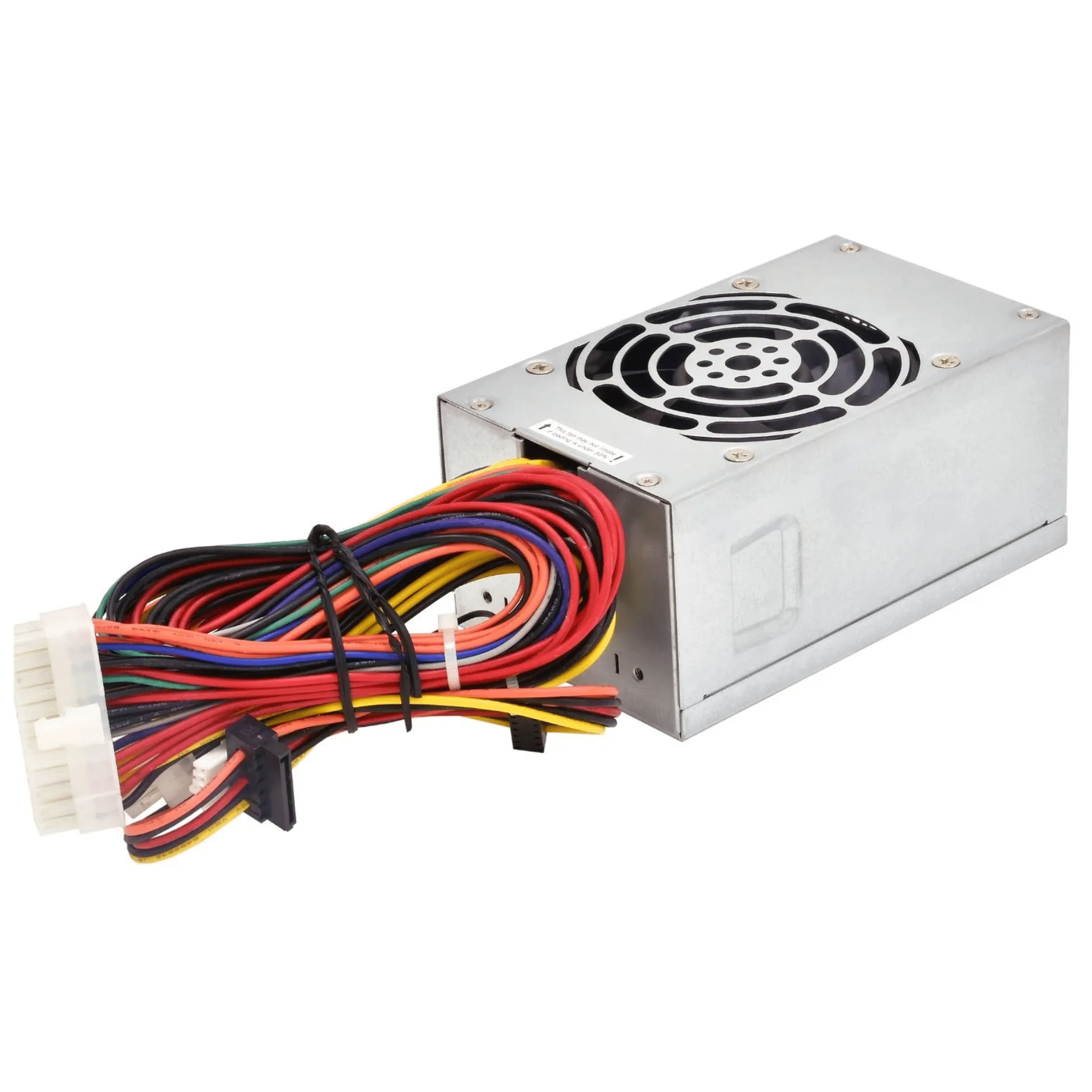

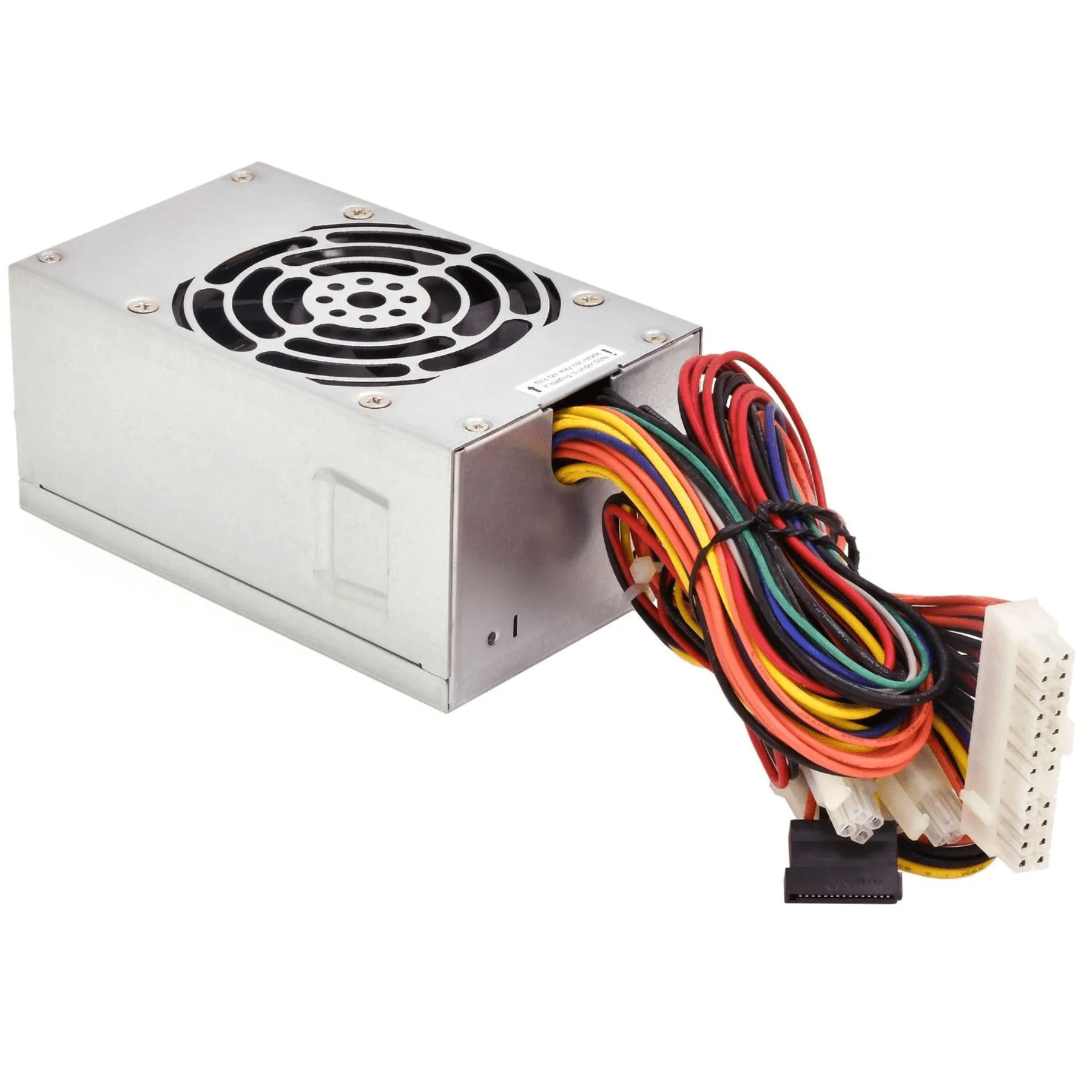

Seasonic SSP-300TBS – Power supply (internal) – TFX12V 2.31 – 80 PLUS Bronze – AC 100-240 V – 300 Watt – active PFC

Descripción Corta:

Product Description: Seasonic SSP-300TBS – power supply – 300 Watt
Device Type: Power supply – active Power Factor Correction (PFC) – internal
Specification Compliance: TFX12V 2.31
80 PLUS Certification: 80 PLUS Bronze
Input Voltage: AC 100-240 V
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 300 Watt
Output Current: +3.3V – 20 A ¦ +5V – 20 A ¦ +12V1 – 18 A ¦ +12V2 – 18 A ¦ -12V – 0.8 A ¦ +5VSB – 2 A
Cooling System: 80 mm fan
Dimensions (WxDxH): 3.3 in x 5.5 in x 2.6 in

Descripción Completa:

General:
Device Type: Power supply – active Power Factor Correction (PFC) – internal
Specification Compliance: TFX12V 2.31
PSU Form Factor: TFX

Power Device:
Input Voltage: AC 100-240 V
Frequency Required: 47/63 Hz
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 300 Watt
Output Current: +3.3V – 20 A ¦ +5V – 20 A ¦ +12V1 – 18 A ¦ +12V2 – 18 A ¦ -12V – 0.8 A ¦ +5VSB – 2 A
Power Factor (PF): 0.95
80 PLUS Certification: 80 PLUS Bronze

Miscellaneous:
MTBF: 100,000 hours
Cooling System: 80 mm fan
Features: Overvoltage protection, overpower protection, dual 12V rails, short-circuit protection, dual ball bearing cooling fan, non-modular
Compliant Standards: TUV, BSMI, cUL, CB, CCC, FCC, RCM

Dimensions & Weight:
Width: 3.3 in
Depth: 5.5 in
Height: 2.6 in
