Seasonic Prime PX 3.0 Series PX-1600 – Power supply (internal) – ATX12V 3.0/ EPS12V – 80 PLUS Platinum – AC 100-240 V – 1600 Watt

Descripción Corta:

Product Description: Seasonic Prime PX 3.0 Series PX-1600 – power supply – 1600 Watt
Device Type: Power supply – internal
Specification Compliance: ATX12V 3.0/ EPS12V
80 PLUS Certification: 80 PLUS Platinum
Input Voltage: AC 100-240 V
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 1600 Watt
Output Current: +3.3V – 25 A ¦ +5V – 25 A ¦ +12V – 133.3 A ¦ -12V – 0.5 A ¦ +5VSB – 3 A

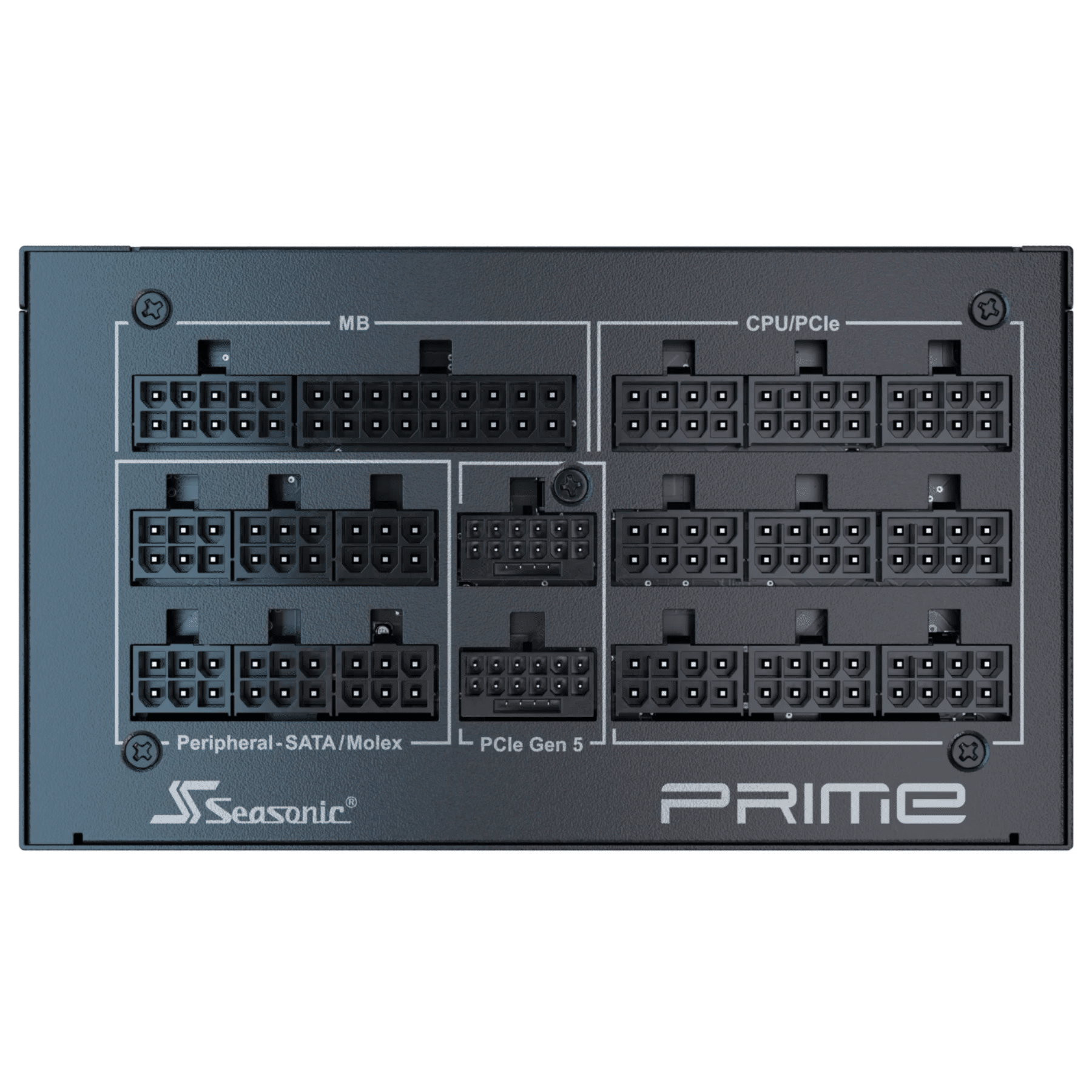

Output connectors: 1 x power 24 pin ATX with detachable 4 pin section ¦ 3 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 2 x 12+4 pin PCI Express 5.0 power ¦ 3 x Molex
Modular Cable Management: Yes
Cooling System: 135 mm fan

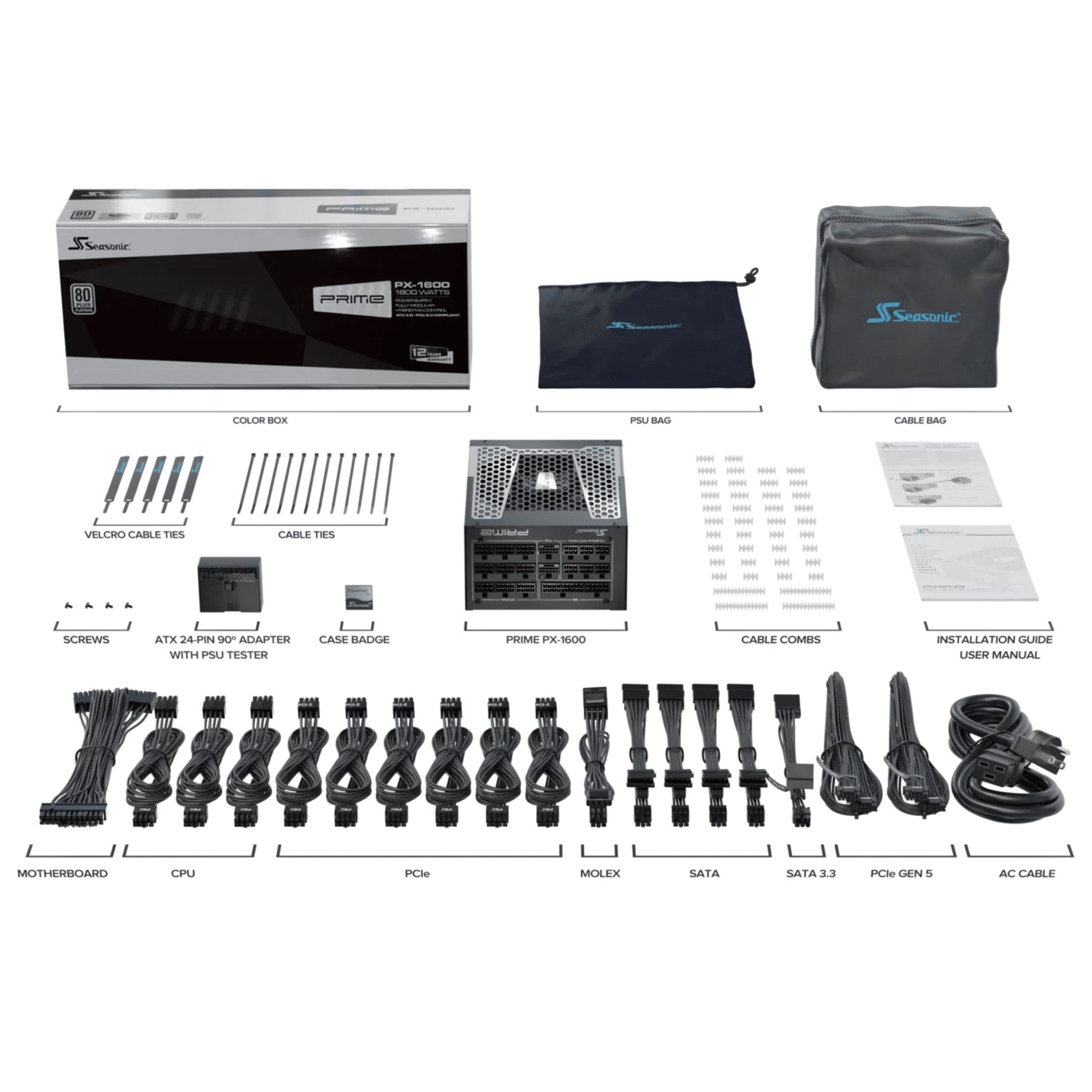

Included Accessories: Screws, case badge, cable ties, cable bag, cable combs, PSU bag, PSU tester, hook-and-loop cable tie
Dimensions (WxDxH): 5.9 in x 8.3 in x 3.4 in
Environmental Standards: ENERGY STAR
Manufacturer Warranty: 12-year warranty

Descripción Completa:

General:
Device Type: Power supply – internal
Specification Compliance: ATX12V 3.0/ EPS12V
PSU Form Factor: ATX

Power Device:
Input Voltage: AC 100-240 V
Frequency Required: 50 – 60 Hz
Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section ¦ 3 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 2 x 12+4 pin PCI Express 5.0 power ¦ 3 x Molex
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 1600 Watt
Output Current: +3.3V – 25 A ¦ +5V – 25 A ¦ +12V – 133.3 A ¦ -12V – 0.5 A ¦ +5VSB – 3 A
Modular Cable Management: Yes
80 PLUS Certification: 80 PLUS Platinum

Miscellaneous:
Included Accessories: Screws, case badge, cable ties, cable bag, cable combs, PSU bag, PSU tester, hook-and-loop cable tie
MTBF: 100,000 hours
Cooling System: 135 mm fan
Features: Fluid dynamic bearing cooling fan, Digital Hybrid Fan Control
Compliant Standards: TUV, BSMI, CB, CCC, RoHS, WEEE, cTUVus, REACH, EAC, ErP Lot 6 2013 Ready

Sustainability Information:
ENERGY STAR: Yes

Manufacturer Warranty:
Service & Support: Limited warranty – 12 years

Environmental Parameters:
Min Operating Temperature: 32 °F
Max Operating Temperature: 122 °F

Dimensions & Weight:
Width: 5.9 in
Depth: 8.3 in
Height: 3.4 in
