QNAP TS-453E – NAS server – 4 bays – SATA 6Gb/s – RAID RAID 0, 1, 5, 6, 10, JBOD – RAM 8 GB – 2.5 Gigabit Ethernet – iSCSI support

Descripción Corta:

Product Description: QNAP TS-453E – NAS server
Device Type: NAS server
Host Connectivity: 2.5 Gigabit Ethernet
Installed Devices / Modules Qty: 0 (installed) / 4 (max)
Dimensions (WxDxH): 7.1 in x 9.3 in x 6.7 in
Weight: 6.61 lbs ()
Localization: United States
Processor: 1 x Intel Celeron J6412 (Quad-Core)
Storage Controller: RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD
Networking: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Performance: Concurrent connections (CIFS): 1500 – (with maximum memory) ¦ Maximum number of storage pool: 128 ¦ Maximum number of volume: 128 ¦ Maximum volume size: 250 TB ¦ Maximum pool size: 308 TB ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 256 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32
RAM: 8 GB
Power: AC 100-240 V
Storage Operating System: QNAP QTS 5.0.1
System Requirements: Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Microsoft Windows 7 / 8 / 10 / 11
Manufacturer Warranty: 3-year warranty

Descripción Completa:

General:
Device Type: NAS server
Host Connectivity: 2.5 Gigabit Ethernet
Total Storage Capacity: 0 GB
Installed Devices / Modules Qty: 0 (installed) / 4 (max)
Width: 7.1 in
Depth: 9.3 in
Height: 6.7 in
Weight: 6.61 lbs ()
Built-in Devices: LED panel
Localization: United States

Processor / Memory:
Processors Installed: 1 x Intel Celeron J6412
Number of Cores: Quad-Core
Max Supported Qty: 1
Max Turbo Speed: 2.6 GHz
RAM: 8 GB
Flash Memory Installed: 4 GB

Storage Controller:
Type: RAID
Interface Type: SATA 6Gb/s
RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD

Networking:
Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Network / Transport Protocol: PPTP, L2TP, IPSec, iSCSI, DDNS, IPv4, IPv6, CIFS, WireGuard, QBelt, QuFTP, OpenVPN
Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, RADIUS
Network Services Compatibility: Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance: Concurrent connections (CIFS): 1500 – (with maximum memory) ¦ Maximum number of storage pool: 128 ¦ Maximum number of volume: 128 ¦ Maximum volume size: 250 TB ¦ Maximum pool size: 308 TB ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 256 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32
Features: VLAN support, wake on LAN (WOL), Jumbo Frames support, DHCP server, FTP server, Domain Controller, built-in hardware transcoding, file station, WebDAV server support, port trunking, SSD trim, Windows ODX, FXP support, hybrid backup sync, Qfiling, Qsirch, Q’center (NAS CMS), SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, built-in buzzer, QmailAgent, QuWAN, user quota managerment, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, shared folder permission, advanced folder permission, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, schedule on/off, iSCSI service, SSD Cache RAID, network drive mount, media streaming add-on
Encryption Algorithm: SSL, TLS, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3

Expansion / Connectivity:
Expansion Bays: 4 (total) / 4 (free) x hot-swap – 2.5″ / 3.5″
Expansion Slots: 2 x M.2 2280

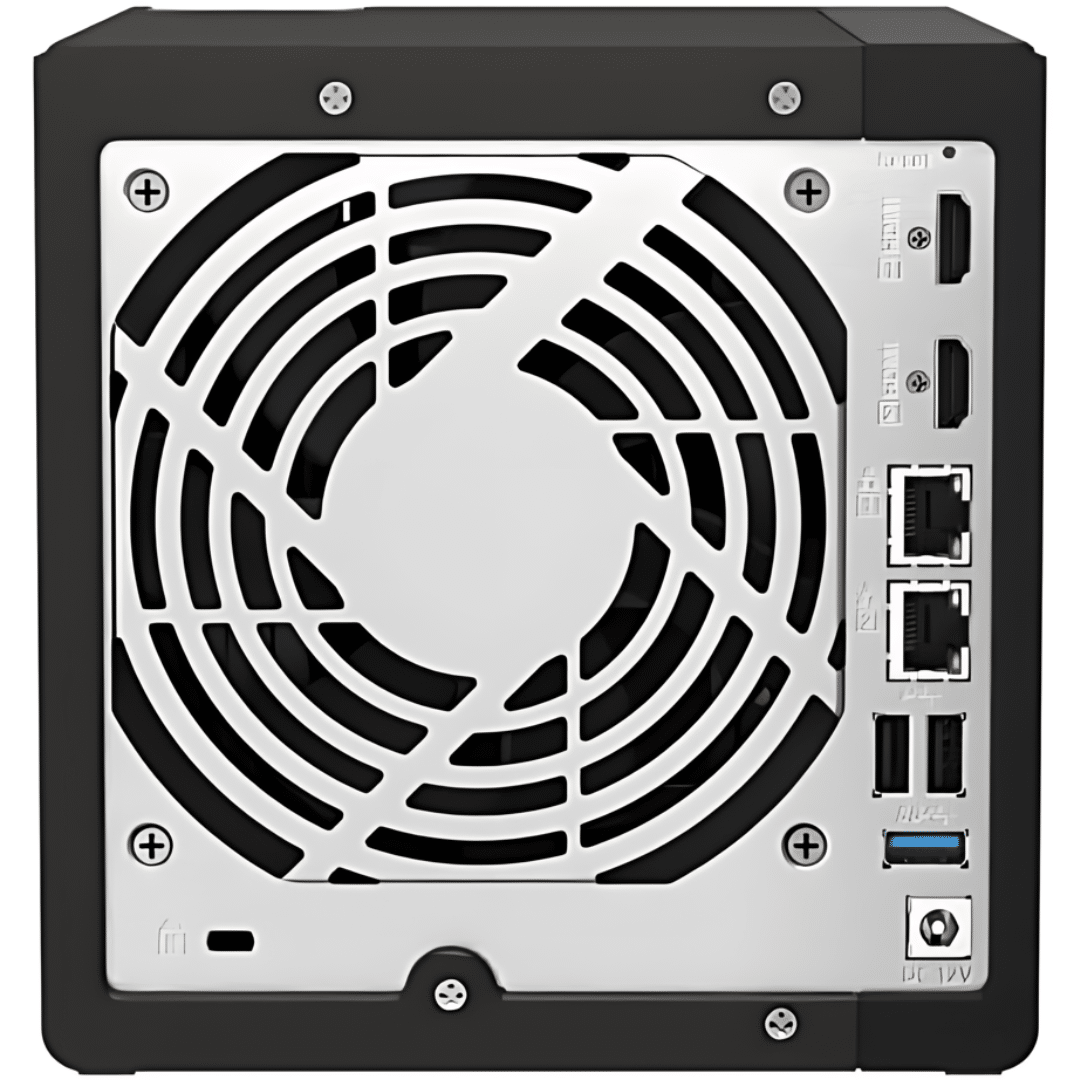

Interfaces: 2 x 2.5 Gigabit Ethernet – RJ-45 ¦ 2 x USB 2.0 – Type A ¦ 2 x USB 3.2 Gen 2 – Type A ¦ 2 x HDMI output

Miscellaneous:
Cables Included: 1 x network cable
Features: Security lock slot (cable lock sold separately), Secure Erase, Smart Fan, 120mm cooling fan
Security Slot Type: Kensington security slot
Compliant Standards: FIPS 140-2
Included Accessories: 12 x flat head screws (for 2.5″ HDD), 16 x flat head screws (for 3.5″ HDD), 2 x flat head screws (for M.2 SSD), power cable, 2 x drive tray keys

Power:
Power Device: External power adapter
Voltage Required: AC 100-240 V
Power Consumption Operational: 33.88 Watt
Power Provided: 90 Watt

Software / System Requirements:
Storage Operating System: QNAP QTS 5.0.1
Software Included: McAfee AntiVirus, IronWolf Health Management
OS Required: Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Microsoft Windows 7 / 8 / 10 / 11

Manufacturer Warranty:
Service & Support: Limited warranty – 3 years

Dimensions & Weight (Shipping):
Shipping Weight: 9.48 lbs

Environmental Parameters:
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 5 – 95% RH (non-condensing)
