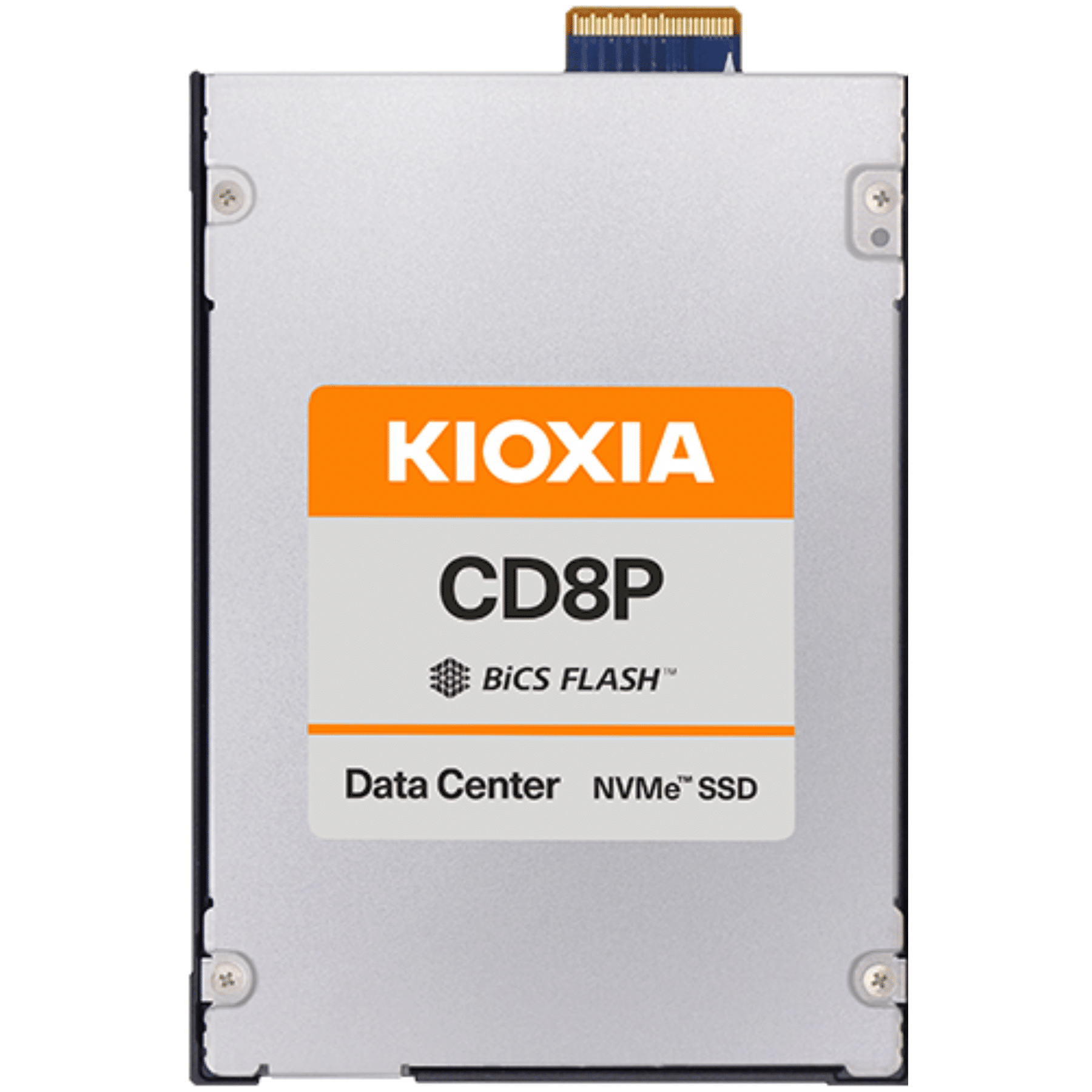

KIOXIA CD8P-R Series KCD8XPJE7T68 – SSD – Data Center, Read Intensive – 7680 GB – internal – E3.S – PCI Express 5.0 x4 (NVMe)

Descripción Corta:

Product Description: KIOXIA CD8P-R Series KCD8XPJE7T68 – SSD – Data Center, Read Intensive – 7680 GB – PCI Express 5.0 x4 (NVMe)
Type: Solid state drive – internal
Capacity: 7680 GB
NAND Flash Memory Type: Triple-level cell (TLC)
Form Factor: E3.S
Interface: PCI Express 5.0 x4 (NVMe)
Drive Class: Data Center, Read Intensive
Features: End-to-end data protection, 24×7 continuous operation, Power Loss Protection (PLP), Sanitize Instant Erase (SIE), single port, BiCS5 flash, Open Compute Project 2.0, NVMe 2.0
Dimensions (WxDxH): 3 in x 4.4 in x 0.3 in
Weight: 3.88 oz
Manufacturer Warranty: 5-year warranty

Descripción Completa:

General:
Device Type: Solid state drive – internal
Capacity: 7680 GB
NAND Flash Memory Type: Triple-level cell (TLC)
Form Factor: E3.S
Interface: PCI Express 5.0 x4 (NVMe)
Features: End-to-end data protection, 24×7 continuous operation, Power Loss Protection (PLP), Sanitize Instant Erase (SIE), single port, BiCS5 flash, Open Compute Project 2.0, NVMe 2.0
Width: 3 in
Depth: 4.4 in
Height: 0.3 in
Weight: 3.88 oz

Performance:
Drive Writes Per Day (DWPD): 1
Drive Class: Data Center, Read Intensive
Internal Data Rate: 12000 MBps (read) / 5500 MBps (write)
4KB Random Read: 2000000 IOPS
4KB Random Write: 200000 IOPS

Reliability:
MTBF: 2,500,000 hours
24×7 Operation: Yes

Expansion & Connectivity:
Interfaces: 1 x PCI Express 5.0 x4 (NVMe)
Compatible Bay: E3.S

Power:
Power Consumption: 21 Watt (active) ¦ 5 Watt (idle)

Manufacturer Warranty:
Service & Support: Limited warranty – 5 years

Environmental Parameters:
Min Operating Temperature: 32 °F
Max Operating Temperature: 168.8 °F
Min Storage Temperature: -40 °F
Max Storage Temperature: 185 °F
Humidity Range Operating: 5 – 95% RH
Shock Tolerance (operating): 1000 g @ 0.5 ms
Vibration Tolerance (operating): 2.17 gRMS @ 5-800 Hz
